Using PyVista for Graphics in PyPrimeMesh#

Summary: This example demonstrates how to visualize all aspects of the PyPrimeMesh data model with fine-grained control using PyVista, through the PrimePlotter API and direct scene access.

The pipe tee junction model (a multi-part CAD assembly) is used to show nine visualization stages:

  1. High-level plotting — plotter.show(model) for quick visualization

  2. Part-based coloring — each part in distinct color using part_id grouping from the polydata dict, with make_distinct_colors()

  3. Zone name visualization — face and volume zones colored distinctly with bounding boxes, names, and a legend

  4. Label visualization — CAD labels mapped to TopoFace IDs with bounding boxes, labels, and a legend

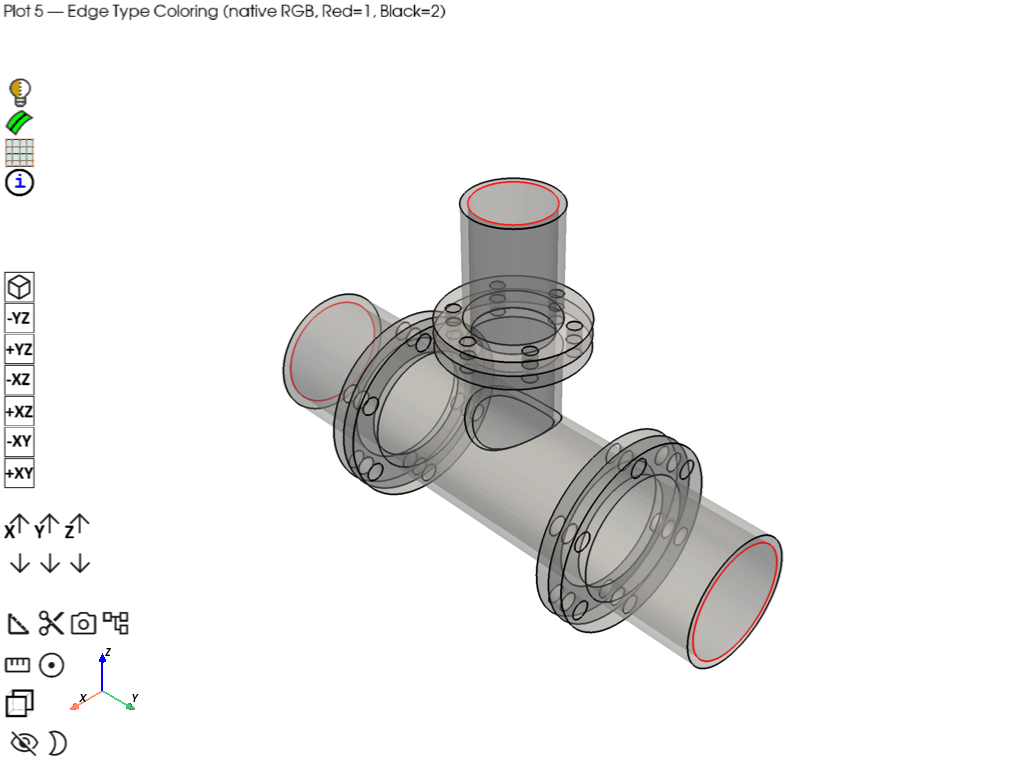

  5. Edge type coloring — topology edges rendered with their native type-based colors (stored in the edge "colors" array)

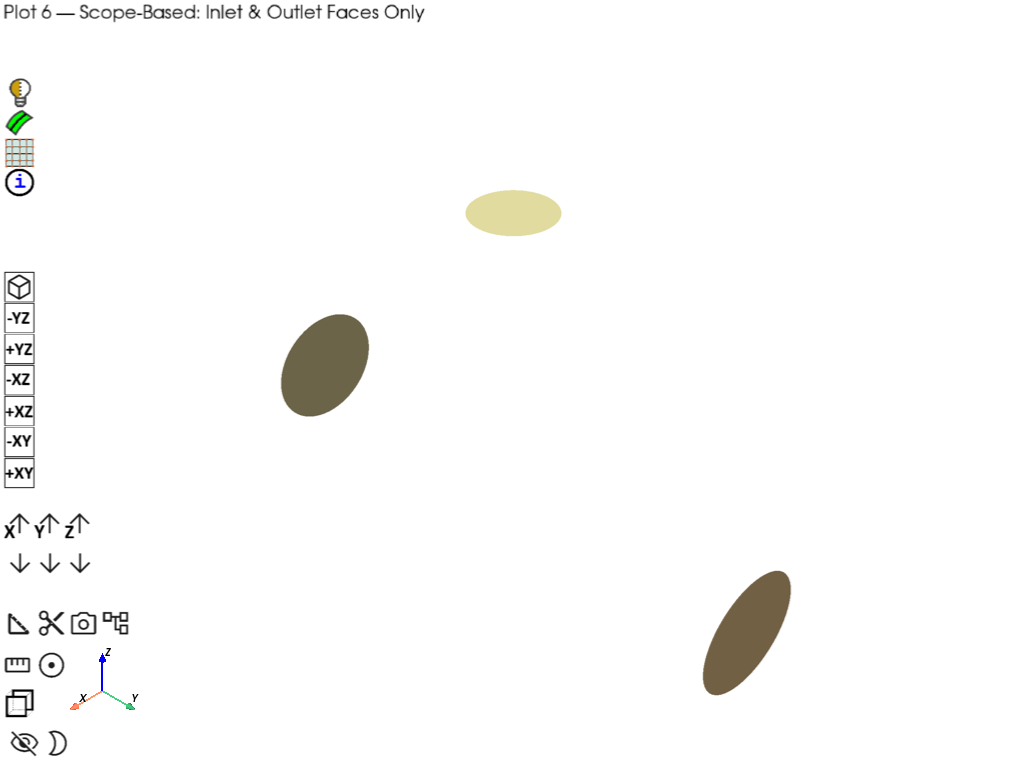

  6. Scope-based plotting — ScopeDefinition to selectively display only labeled inlet/outlet faces

  7. Face zonelet visualization — after extracting fluid region using wrapping and volume meshing showing face zonelets with distinct colors and ID annotations

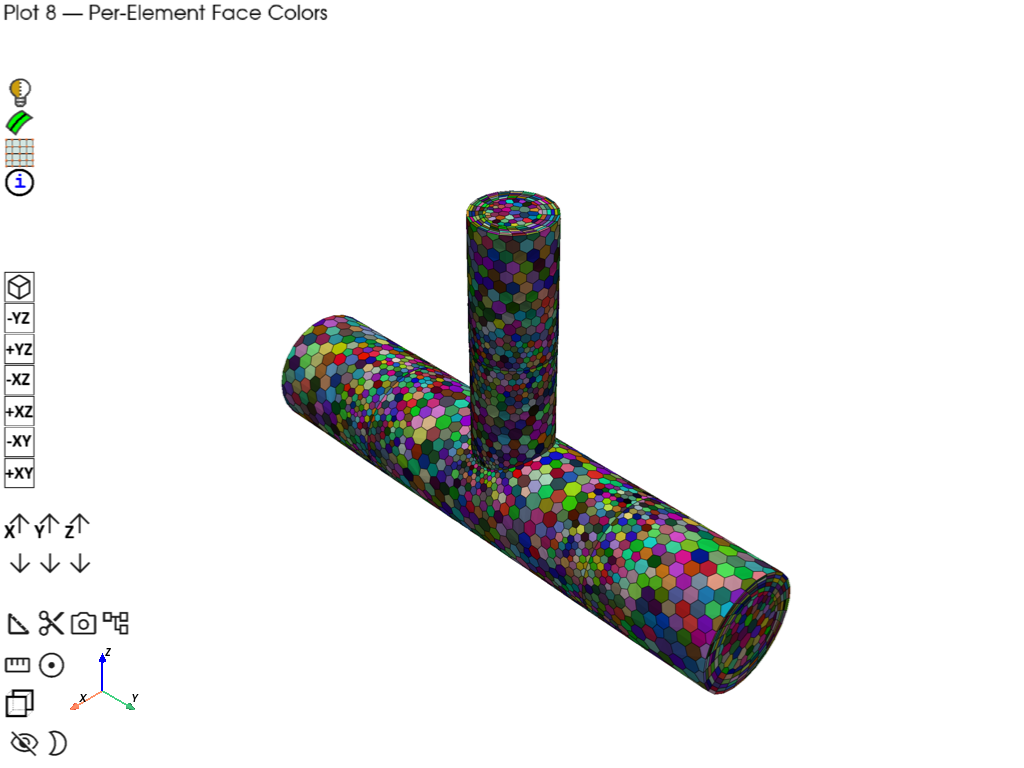

  8. Per-element face coloring — individual mesh face cells colored uniquely via cell_data scalars

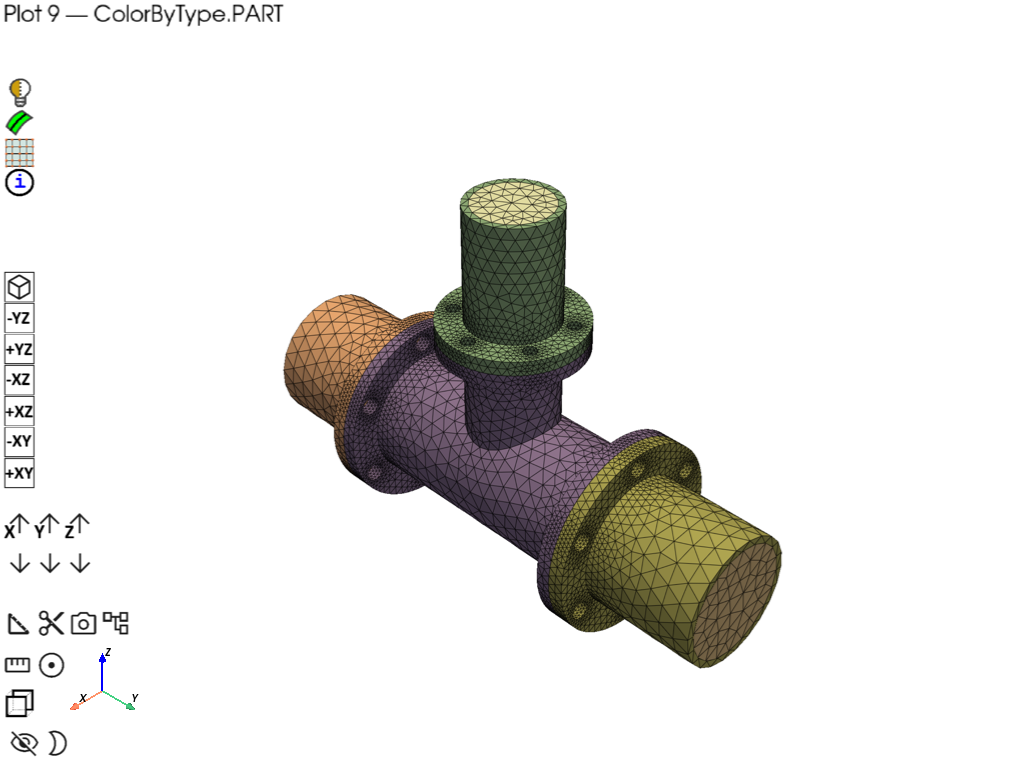

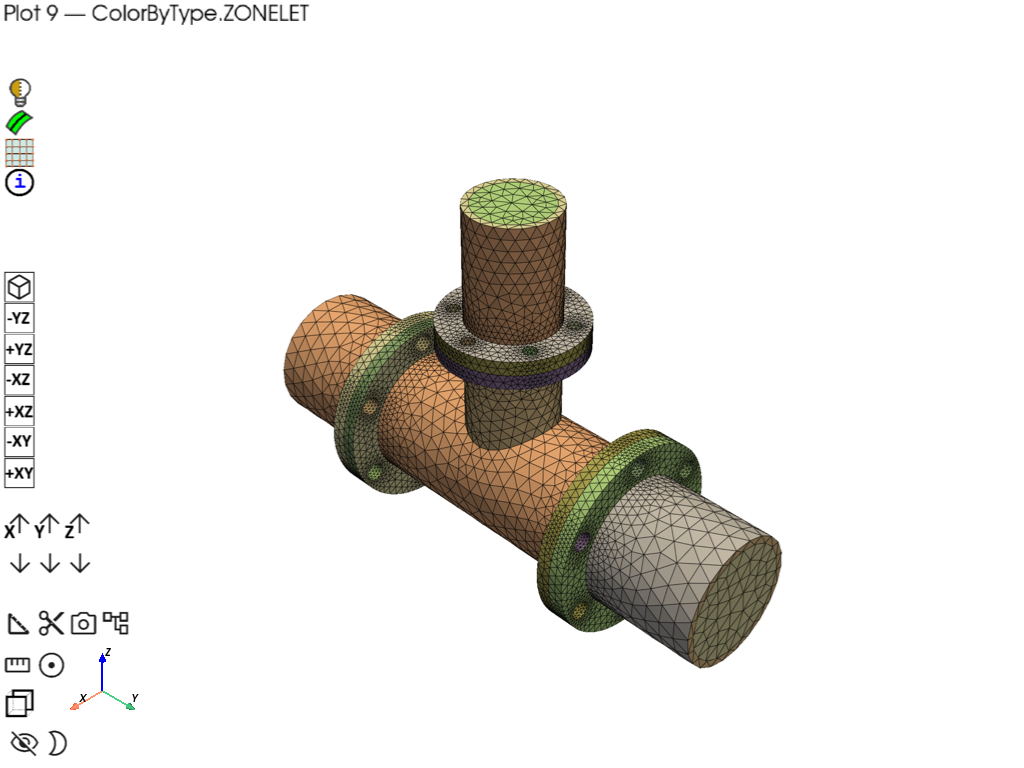

  9. ColorByType modes — reading and meshing structural parts to show colored by ZONE, ZONELET, and PART using direct color_matrix indexing

Key data model concepts demonstrated:

  • Multi-part models: polydata dict is keyed by part_id; each part contains its own faces, edges, control points, and spline surfaces

  • DisplayMeshType filtering (TOPOFACE, TOPOEDGE, FACEZONELET, EDGEZONELET) to distinguish entity types

  • DisplayMeshInfo metadata (id, zone_name, zone_id, part_id, part_name, has_mesh, display_mesh_type) preserved through info_actor_map

  • Labels vs Zones: labels are overlapping CAD metadata queried via Part.get_labels(); zones are non-overlapping mesh groupings from Part.get_face_zones() / Part.get_volume_zones()

  • Edge type colors: edges carry type-based RGB data in their "colors" array (red, black, cyan, magenta, yellow, purple by edge type)

  • ColorByType: get_scalar_colors() supports ZONE, ZONELET, and PART coloring modes; the built-in ColorByTypeWidget cycles between them

  • Polydata access: model.as_polydata() returns a dict keyed by part ID with "faces" (tuples of MeshObjectPlot, DisplayMeshInfo), "edges" (MeshObjectPlot), "ctrlpts", and "splinesurf" lists

  • Public scene helpers: plotter.add_mesh(), plotter.add_point_labels(), plotter.add_legend(), plotter.add_text() for full PyVista parameter access without reaching into private attributes; plotter.scene for escape-hatch access

  • Built-in widgets: PrimePlotter auto-registers four interactive widgets (ToggleEdges, ColorByType, PickedInfo, HidePicked) accessible via the checkbox buttons in the scene

# sphinx_gallery_thumbnail_number = 2
# sphinx_gallery_tags = ["Graphics"]

import colorsys

import numpy as np
import pyvista as pv

import ansys.meshing.prime as prime
from ansys.meshing.prime.core.mesh import DisplayMeshType
from ansys.meshing.prime.graphics.plotter import ColorByType, PrimePlotter, color_matrix


def make_distinct_colors(n):
    """Generate n maximally distinct colors using HSV spacing."""
    colors = {}
    for i in range(n):
        hue = i / max(n, 1)
        rgb = colorsys.hsv_to_rgb(hue, 0.85, 0.95)
        colors[i] = list(rgb)
    return colors


# Launch Prime server and initialize model
prime_client = prime.launch_prime()
model = prime_client.model
mesh_util = prime.lucid.Mesh(model)

# Load pipe tee CAD geometry
pipe_tee = prime.examples.download_pipe_tee_pmdat()
mesh_util.read(file_name=pipe_tee)

# For reference the model contains:
print(model)

Warning (Client): Modification of these configurations is not recommended.
Refer the documentation for your installed product for additional information.
/home/runner/work/pyprimemesh/pyprimemesh/.venv/lib/python3.14/site-packages/ansys/meshing/prime/internals/cyberchannel.py:183: UserWarning: Starting gRPC client without TLS on 127.0.0.1:36359. This is INSECURE. Consider using a secure connection.
  warn(
Part Summary:

Part Name: solid_coupling_out
Part ID: 2
    18 Topo Edges
    12 Topo Faces
    1 Topo Volumes

    0 Edge Zones
        Edge Zone Name(s) : []
    0 Face Zones
        Face Zone Name(s) : []
    1 Volume Zones
        Volume Zone Name(s) : [solid_coupling_out]

    1 Label(s)
        Names: [out]

    Bounding box (-127 -360.99 -127)
                 (127 -184.15 127)

Part Name: solid_coupling_in1
Part ID: 3
    18 Topo Edges
    12 Topo Faces
    1 Topo Volumes

    0 Edge Zones
        Edge Zone Name(s) : []
    0 Face Zones
        Face Zone Name(s) : []
    1 Volume Zones
        Volume Zone Name(s) : [solid_coupling_in1]

    1 Label(s)
        Names: [in1]

    Bounding box (-127 184.15 -127)
                 (127 356.616 127)

Part Name: solid_tee
Part ID: 4
    50 Topo Edges
    31 Topo Faces
    1 Topo Volumes

    0 Edge Zones
        Edge Zone Name(s) : []
    0 Face Zones
        Face Zone Name(s) : []
    1 Volume Zones
        Volume Zone Name(s) : [solid_tee]

    0 Label(s)
        Names: []

    Bounding box (-127 -184.15 -127)
                 (127 184.15 203.2)

Part Name: solid_coupling_in2
Part ID: 5
    18 Topo Edges
    12 Topo Faces
    1 Topo Volumes

    0 Edge Zones
        Edge Zone Name(s) : []
    0 Face Zones
        Face Zone Name(s) : []
    1 Volume Zones
        Volume Zone Name(s) : [solid_coupling_in2]

    1 Label(s)
        Names: [in2]

    Bounding box (-95.25 -95.25 203.2)
                 (95.25 95.25 374.65)

Part Name: cap_out
Part ID: 6
    1 Topo Edges
    1 Topo Faces
    0 Topo Volumes

    0 Edge Zones
        Edge Zone Name(s) : []
    1 Face Zones
        Face Zone Name(s) : [cap_out]
    0 Volume Zones
        Volume Zone Name(s) : []

    1 Label(s)
        Names: [outlet_main]

    Bounding box (-76.2 -360.99 -76.2)
                 (76.2 -360.99 76.2)

Part Name: cap_in2
Part ID: 7
    1 Topo Edges
    1 Topo Faces
    0 Topo Volumes

    0 Edge Zones
        Edge Zone Name(s) : []
    1 Face Zones
        Face Zone Name(s) : [cap_in2]
    0 Volume Zones
        Volume Zone Name(s) : []

    1 Label(s)
        Names: [in2_inlet]

    Bounding box (-51.308 -51.308 374.65)
                 (51.308 51.308 374.65)

Part Name: cap_in1
Part ID: 8
    1 Topo Edges
    1 Topo Faces
    0 Topo Volumes

    0 Edge Zones
        Edge Zone Name(s) : []
    1 Face Zones
        Face Zone Name(s) : [cap_in1]
    0 Volume Zones
        Volume Zone Name(s) : []

    1 Label(s)
        Names: [in1_inlet]

    Bounding box (-76.2 356.616 -76.2)
                 (76.2 356.616 76.2)

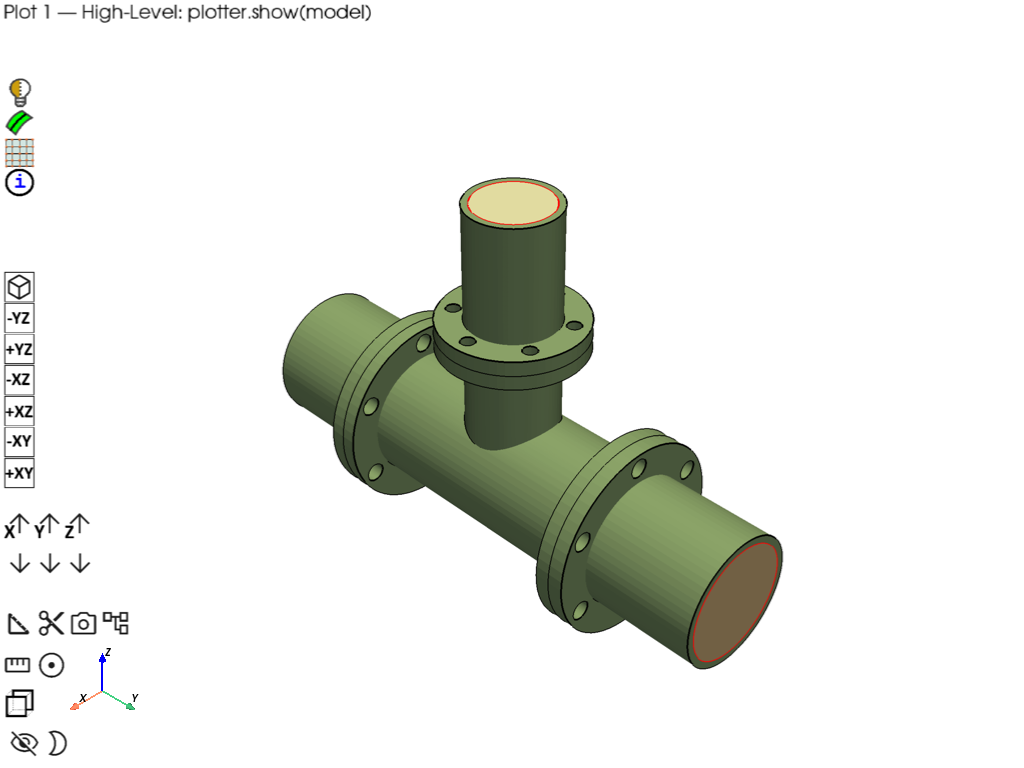

Plot 1: High-level — plotter.show(model)#

The simplest way to visualize a model: one line of code. PrimePlotter.show() accepts a Model directly and plots all entities using the default color scheme (zone-based coloring with edge visibility determined by has_mesh).

plotter = PrimePlotter()
plotter.add_text(
    "Plot 1 \u2014 High-Level: plotter.show(model)",
    position="upper_left",
    font_size=10,
    color="black",
)
plotter.show(model, title="Plot 1 — High-Level: plotter.show(model)")
13 pyvista graphics
/home/runner/work/pyprimemesh/pyprimemesh/.venv/lib/python3.14/site-packages/ansys/meshing/prime/core/mesh.py:327: PyVistaDeprecationWarning: `n_faces_strict` is deprecated. Use `n_faces` instead, which now returns the number of polygonal faces.
  colors = np.tile(fcolor, (surf.n_faces_strict, 1))

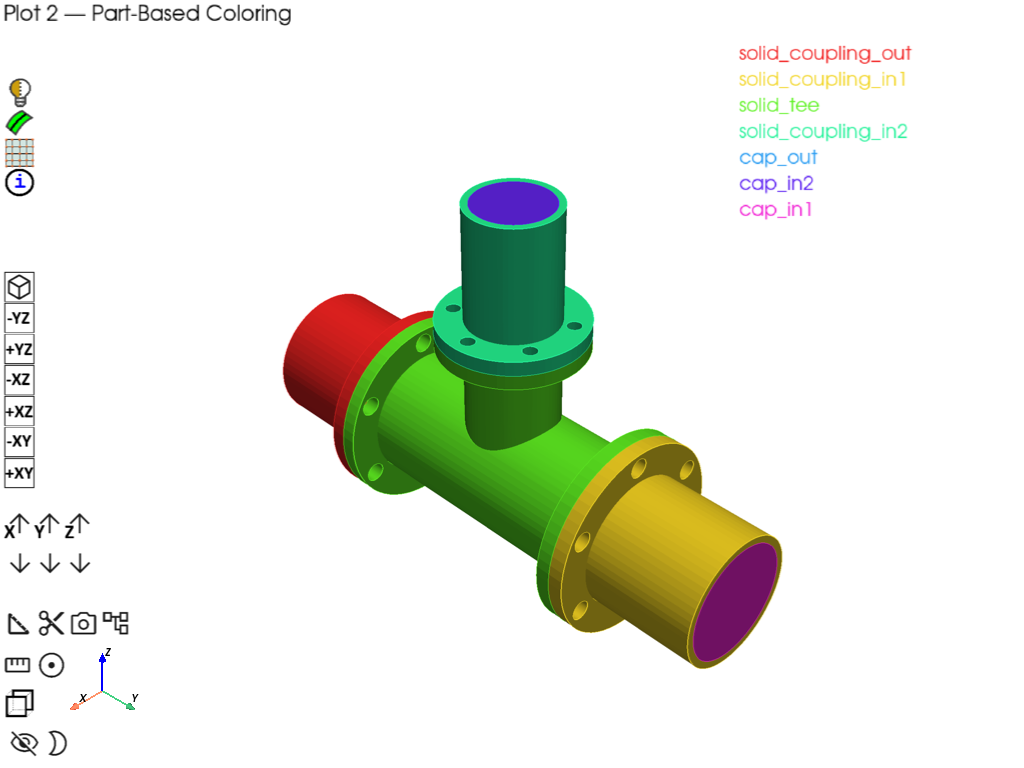

Plot 2: Part-based coloring (multi-part model)#

Demonstrates:

  • Polydata dict is keyed by part_id — one entry per part

  • make_distinct_colors() for custom per-part coloring

  • Iterating parts to show part names and face/edge counts

  • plotter.add_mesh() for both MeshObjectPlot and raw mesh objects

plotter = PrimePlotter()
graphics_data = model.as_polydata()

# Print part structure
print("Model parts:")
for part in model.parts:
    print(f"  Part '{part.name}' (id={part.id})")

# Assign a distinct color per part
part_ids = sorted(graphics_data.keys())
part_color_map = make_distinct_colors(len(part_ids))

legend_entries = []
for idx, part_id in enumerate(part_ids):
    part_data = graphics_data[part_id]
    part_name = model.get_part(part_id).name
    color = part_color_map[idx]
    legend_entries.append([part_name, color])

    # Add faces for this part
    if "faces" in part_data:
        for item in part_data["faces"]:
            if item is None:
                continue
            polydata, metadata = item
            plotter.add_mesh(polydata, metadata, color=color, opacity=1.0, show_edges=False)

    # Add edges for this part with same part color
    if "edges" in part_data:
        for edge_obj in part_data["edges"]:
            if edge_obj is None:
                continue
            plotter.add_mesh(edge_obj.mesh, color=color, line_width=2, pickable=False)

plotter.add_legend(legend_entries, bcolor="white", border=True, size=(0.2, 0.25))
plotter.add_text(
    "Plot 2 \u2014 Part-Based Coloring",
    position="upper_left",
    font_size=10,
    color="black",
)
plotter.show(title="Plot 2 — Part-Based Coloring")
13 pyvista graphics
Model parts:
  Part 'solid_coupling_out' (id=2)
  Part 'solid_coupling_in1' (id=3)
  Part 'solid_tee' (id=4)
  Part 'solid_coupling_in2' (id=5)
  Part 'cap_out' (id=6)
  Part 'cap_in2' (id=7)
  Part 'cap_in1' (id=8)

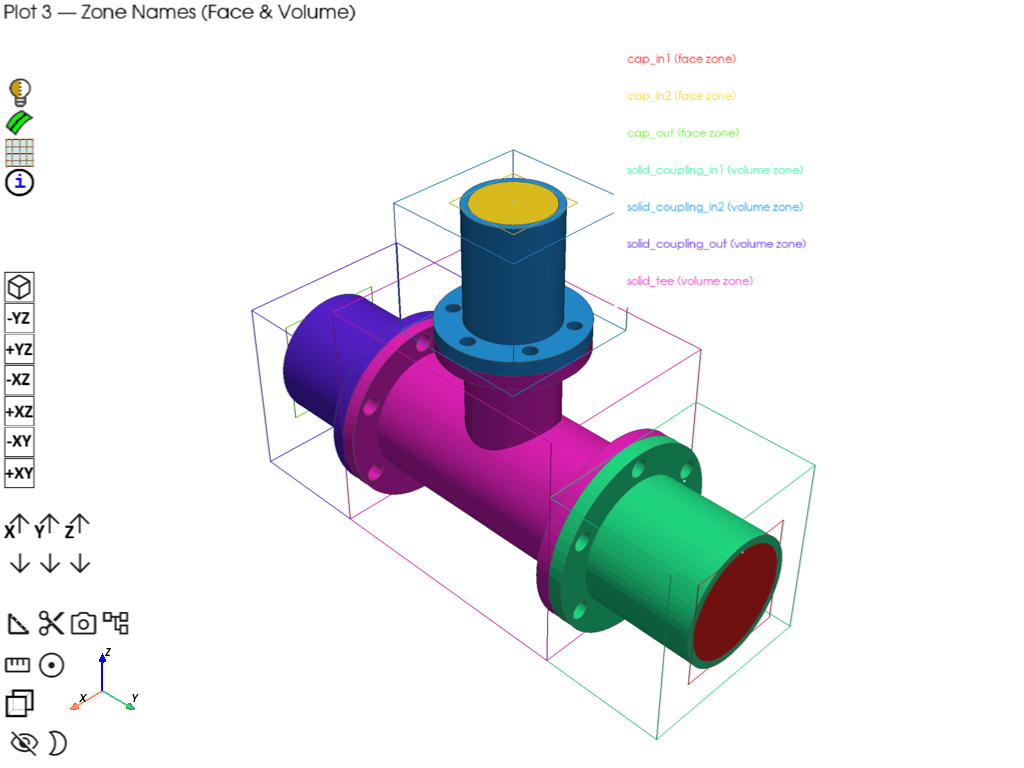

Plot 3: Zone name visualization (face zones + volume zones)#

Demonstrates:

  • Querying face and volume zones via Part.get_face_zones() / get_volume_zones()

  • Mapping zone IDs to names via model.get_zone_name()

  • Custom coloring per zone with bounding boxes and point labels

  • Legend showing all zone names (volume zones annotated)

plotter = PrimePlotter()
graphics_data = model.as_polydata()

# Collect all zone names from parts, and build zone_id -> zone_name map
all_zone_names = set()
volume_zone_info = {}
face_zone_info = {}
zone_id_to_name = {}
for part in model.parts:
    for fz_id in part.get_face_zones():
        name = model.get_zone_name(fz_id)
        if name:
            all_zone_names.add(name)
            face_zone_info[name] = fz_id
            zone_id_to_name[fz_id] = name
    for vz_id in part.get_volume_zones():
        name = model.get_zone_name(vz_id)
        if name:
            all_zone_names.add(name)
            volume_zone_info[name] = vz_id
            zone_id_to_name[vz_id] = name

# Assign distinct colors
zone_list = sorted(all_zone_names)
zone_color_map = make_distinct_colors(max(len(zone_list), 1))
zone_colors = {name: zone_color_map[i] for i, name in enumerate(zone_list)}

# Add faces colored by zone; collect meshes for bounding boxes
zone_face_meshes = {}
for part_id, part_data in graphics_data.items():
    for entity_type, entity_list in part_data.items():
        if entity_type == "faces":
            for item in entity_list:
                if item is None:
                    continue
                polydata, metadata = item
                # Resolve zone name: prefer metadata.zone_name, then zone_id lookup
                zname = metadata.zone_name
                if not zname and metadata.zone_id:
                    zname = zone_id_to_name.get(metadata.zone_id)
                if not zname:
                    # Auto-name for faces with no zone assignment
                    zname = f"zone_{metadata.zone_id}" if metadata.zone_id else metadata.part_name
                    if zname not in zone_colors:
                        hue = (len(zone_colors) * 0.618) % 1.0  # golden ratio spacing
                        rgb = colorsys.hsv_to_rgb(hue, 0.7, 0.9)
                        zone_colors[zname] = list(rgb)
                        zone_list.append(zname)
                color = zone_colors.get(zname, [0.5, 0.5, 0.5])
                zone_face_meshes.setdefault(zname, []).append(polydata.mesh)
                plotter.add_mesh(polydata, metadata, color=color, opacity=1.0, show_edges=False)
        elif entity_type == "edges":
            for edge_obj in entity_list:
                if edge_obj is None:
                    continue
                plotter.add_mesh(edge_obj.mesh, color=[0.3, 0.3, 0.3], line_width=2, pickable=False)

# Add bounding boxes and labels for zones that have face geometry
for zname, meshes in zone_face_meshes.items():
    combined = meshes[0] if len(meshes) == 1 else meshes[0].merge(meshes[1:])
    bounds = combined.bounds
    bbox = pv.Box(bounds)
    color = zone_colors[zname]
    plotter.add_mesh(bbox, color=color, style="wireframe", line_width=2, pickable=False)
    center = [
        (bounds[0] + bounds[1]) / 2,
        (bounds[2] + bounds[3]) / 2,
        bounds[5],
    ]
    plotter.add_point_labels(
        np.array([center]),
        [zname],
        font_size=16,
        text_color=color,
        bold=True,
        shape=None,
        render_points_as_spheres=False,
        point_size=0,
    )

# Legend with face and volume zones distinguished
legend_entries = []
for zname in zone_list:
    if zname in volume_zone_info:
        suffix = " (volume zone)"
    elif zname in face_zone_info:
        suffix = " (face zone)"
    else:
        suffix = ""
    legend_entries.append([zname + suffix, zone_colors[zname]])
plotter.add_legend(legend_entries, bcolor="white", border=True, size=(0.2, 0.35))
plotter.add_text(
    "Plot 3 \u2014 Zone Names (Face & Volume)",
    position="upper_left",
    font_size=10,
    color="black",
)
plotter.show(title="Plot 3 \u2014 Zone Names (Face & Volume)")
13 pyvista graphics

Plot 4: Label visualization (CAD labels → TopoFace IDs)#

Demonstrates:

  • Querying labels via Part.get_labels()

  • Resolving label → TopoFace IDs via get_topo_faces_of_label_name_pattern()

  • Matching metadata.id to TopoFace IDs for coloring

  • Filtering by DisplayMeshType.TOPOFACE and TOPOEDGE

plotter = PrimePlotter()
graphics_data = model.as_polydata()

# Build label → TopoFace ID mapping
label_topoface_map = {}
for part in model.parts:
    for label in part.get_labels():
        topo_face_ids = part.get_topo_faces_of_label_name_pattern(
            label, prime.NamePatternParams(model)
        )
        if topo_face_ids:
            label_topoface_map.setdefault(label, set()).update(topo_face_ids)

# Reverse map: TopoFace ID → label
topoface_label_map = {}
for label, topo_ids in label_topoface_map.items():
    for tid in topo_ids:
        topoface_label_map.setdefault(tid, label)

# Assign distinct colors
label_list = sorted(label_topoface_map.keys())
label_color_map = make_distinct_colors(len(label_list))
label_colors = {name: label_color_map[i] for i, name in enumerate(label_list)}

# Add faces and edges, filtering by DisplayMeshType
label_face_meshes = {}
for part_id, part_data in graphics_data.items():
    for entity_type, entity_list in part_data.items():
        if entity_type == "faces":
            for item in entity_list:
                if item is None:
                    continue
                polydata, metadata = item
                # Use DisplayMeshType to confirm this is a topology face
                if metadata.display_mesh_type == DisplayMeshType.TOPOFACE:
                    face_label = topoface_label_map.get(metadata.id)
                    if face_label and face_label in label_colors:
                        color = label_colors[face_label]
                        opacity = 1.0
                        label_face_meshes.setdefault(face_label, []).append(polydata.mesh)
                    else:
                        color = [0.5, 0.5, 0.5]
                        opacity = 0.3
                    plotter.add_mesh(
                        polydata, metadata, color=color, opacity=opacity, show_edges=False
                    )
        elif entity_type == "edges":
            for edge_obj in entity_list:
                if edge_obj is None:
                    continue
                plotter.add_mesh(edge_obj.mesh, color=[0.2, 0.2, 0.2], line_width=2, pickable=False)

# Bounding boxes and labels
for label_name, meshes in label_face_meshes.items():
    combined = meshes[0] if len(meshes) == 1 else meshes[0].merge(meshes[1:])
    bounds = combined.bounds
    bbox = pv.Box(bounds)
    color = label_colors[label_name]
    plotter.add_mesh(bbox, color=color, style="wireframe", line_width=2, pickable=False)
    center = [
        (bounds[0] + bounds[1]) / 2,
        (bounds[2] + bounds[3]) / 2,
        bounds[5],
    ]
    plotter.add_point_labels(
        np.array([center]),
        [label_name],
        font_size=16,
        text_color=color,
        bold=True,
        shape=None,
        render_points_as_spheres=False,
        point_size=0,
    )

# Legend
legend_entries = [[name, label_colors[name]] for name in label_list]
legend_entries.append(["unlabeled", [0.5, 0.5, 0.5]])
plotter.add_legend(legend_entries, bcolor="white", border=True, size=(0.2, 0.3))
plotter.add_text(
    "Plot 4 \u2014 CAD Labels on TopoFaces",
    position="upper_left",
    font_size=10,
    color="black",
)
plotter.show(title="Plot 4 \u2014 CAD Labels on TopoFaces")
13 pyvista graphics

Plot 5: Edge type coloring#

Demonstrates:

  • Edge MeshObjectPlot carries type-based RGB in mesh[“colors”] array

  • Native edge colors encode topology connectivity edge type (red, black, etc.)

  • Red: connected to a single face

  • Black: connected to two faces

  • Rendering edges with their built-in scalars via rgb=True

plotter = PrimePlotter()
graphics_data = model.as_polydata()

for part_id, part_data in graphics_data.items():
    # Add faces as light transparent background
    if "faces" in part_data:
        for item in part_data["faces"]:
            if item is None:
                continue
            polydata, metadata = item
            plotter.add_mesh(
                polydata, metadata, color=[0.85, 0.85, 0.85], opacity=0.3, show_edges=False
            )
    # Add edges with their native type-based colors
    if "edges" in part_data:
        for edge_obj in part_data["edges"]:
            if edge_obj is None:
                continue
            plotter.add_mesh(
                edge_obj.mesh,
                scalars="colors",
                rgb=True,
                line_width=4,
                pickable=False,
            )

plotter.add_text(
    "Plot 5 \u2014 Edge Type Coloring (native RGB, Red=1, Black=2)",
    position="upper_left",
    font_size=10,
    color="black",
)
plotter.show(title="Plot 5 \u2014 Edge Type Coloring")
13 pyvista graphics

Plot 6: Scope-based plotting#

Demonstrates:

  • ScopeDefinition with label_expression to select specific entities

  • plotter.plot(model, scope=scope) for selective display

  • Combining scoped plots with different visual styles

plotter = PrimePlotter()

# Show only inlet and outlet faces using label-based scoping
scope_inlets = prime.ScopeDefinition(model, label_expression="in1_inlet,in2_inlet,outlet_main")
plotter.plot(model, scope=scope_inlets)
plotter.add_text(
    "Plot 6 \u2014 Scope-Based: Inlet & Outlet Faces Only",
    position="upper_left",
    font_size=10,
    color="black",
)
plotter.show(title="Plot 6 \u2014 Scope-Based: Inlet & Outlet Faces Only")
13 pyvista graphics

Meshing — wrap, surface mesh, volume mesh#

mesh_util.wrap(min_size=6, region_extract=prime.WrapRegion.LARGESTINTERNAL)
model.set_global_sizing_params(prime.GlobalSizingParams(model, min=6, max=50))
mesh_util.create_zones_from_labels("outlet_main,in1_inlet,in2_inlet")
mesh_util.surface_mesh(min_size=5, max_size=20)
mesh_util.volume_mesh(
    prism_layers=5,
    prism_surface_expression="* !*inlet* !*outlet*",
    volume_fill_type=prime.VolumeFillType.POLY,
)

# For reference after meshing the model contains:
print(model)

Part Summary:

Part Name: __wrap__
Part ID: 9
    1 Edge Zonelets
    8 Face Zonelets
    1 Cell Zonelets

    0 Edge Zones
        Edge Zone Name(s) : []
    6 Face Zones
        Face Zone Name(s) : [cap_out, cap_in2, cap_in1, in1_inlet, in2_inlet, outlet_main]
    1 Volume Zones
        Volume Zone Name(s) : [unreferenced]

    13 Label(s)
        Names: [___geom_features___, __extracted__features__, cap_in1, cap_in2, cap_out, in1_inlet, in2_inlet, outlet_main, solid_coupling_in1, solid_coupling_in2, solid_coupling_out, solid_tee, unreferenced]

    Bounding box (-127 -360.99 -126.959)
                 (126.934 356.616 374.65)

Plot 7: Face zonelet visualization (post-meshing)#

Demonstrates:

  • update=True on as_polydata() to refresh after meshing

  • Filtering by DisplayMeshType.FACEZONELET and has_mesh=True

  • Distinct color per face zonelet with ID annotations

  • plotter.add_point_labels() for face zonelet IDs

plotter = PrimePlotter()
volume_graphics_data = model.as_polydata(update=True)

# Collect meshed face zonelets
zonelet_items = []
for part_id, part_data in volume_graphics_data.items():
    for entity_type, entity_list in part_data.items():
        if entity_type == "faces":
            for item in entity_list:
                if item is None:
                    continue
                polydata, metadata = item
                if metadata.has_mesh and metadata.display_mesh_type == DisplayMeshType.FACEZONELET:
                    zonelet_items.append((polydata, metadata))

# Assign distinct colors and add ID labels
zonelet_color_map = make_distinct_colors(len(zonelet_items))
for i, (polydata, metadata) in enumerate(zonelet_items):
    color = zonelet_color_map[i]
    plotter.add_mesh(
        polydata,
        metadata,
        color=color,
        opacity=1.0,
        show_edges=True,
        line_width=0.5,
    )
    # Annotate each face zonelet with its ID at the mesh center
    center = np.array(polydata.mesh.center)
    plotter.add_point_labels(
        np.array([center]),
        [str(metadata.id)],
        font_size=12,
        text_color="black",
        bold=True,
        shape=None,
        render_points_as_spheres=False,
        point_size=0,
    )
plotter.add_text(
    "Plot 7 \u2014 Face Zonelets with IDs",
    position="upper_left",
    font_size=10,
    color="black",
)
plotter.show(title="Plot 7 \u2014 Face Zonelets with IDs")
13 pyvista graphics
/home/runner/work/pyprimemesh/pyprimemesh/.venv/lib/python3.14/site-packages/ansys/meshing/prime/core/mesh.py:327: PyVistaDeprecationWarning: `n_faces_strict` is deprecated. Use `n_faces` instead, which now returns the number of polygonal faces.
  colors = np.tile(fcolor, (surf.n_faces_strict, 1))

Plot 8: Per-element face coloring#

Demonstrates:

  • Assigning per-cell RGB scalars via cell_data on a copy of the mesh

  • plotter.add_mesh() with scalars=’RGB’, rgb=True, and metadata

  • Metadata automatically registered in info_actor_map

plotter = PrimePlotter()
rng = np.random.default_rng(seed=42)

for part_id, part_data in volume_graphics_data.items():
    for entity_type, entity_list in part_data.items():
        if entity_type == "faces":
            for item in entity_list:
                if item is None:
                    continue
                polydata, metadata = item
                if metadata.has_mesh:
                    # Copy to avoid mutating cached polydata
                    mesh_copy = polydata.mesh.copy()
                    n_cells = mesh_copy.n_cells
                    if n_cells > 0:
                        cell_colors = rng.integers(0, 256, size=(n_cells, 3), dtype=np.uint8)
                        mesh_copy.cell_data["RGB"] = cell_colors
                        plotter.add_mesh(
                            mesh_copy,
                            metadata,
                            scalars="RGB",
                            rgb=True,
                            show_edges=True,
                            line_width=0.5,
                            pickable=True,
                        )
plotter.add_text(
    "Plot 8 \u2014 Per-Element Face Colors",
    position="upper_left",
    font_size=10,
    color="black",
)
plotter.show(title="Plot 8 \u2014 Per-Element Face Colors")
13 pyvista graphics

Plot 9: ColorByType MODES (ZONE / ZONELET / PART)#

Demonstrates:

  • ColorByType enum (ZONE, ZONELET, PART) for different coloring strategies

  • Same mesh data rendered three ways using the color_matrix palette

  • This is the logic used by the built-in ColorByType widget

# Load pipe tee CAD geometry and mesh as separate parts to show color by type
pipe_tee = prime.examples.download_pipe_tee_pmdat()
mesh_util.read(file_name=pipe_tee)

mesh_util.surface_mesh(min_size=5, max_size=25)
mesh_util.volume_mesh()

# getting updated data for the new mesh
volume_graphics_data = model.as_polydata(update=True)

# For reference after the structural parts are meshed the model contains:
print(model)

num_colors = int(color_matrix.size / 3)

for color_mode in [ColorByType.ZONE, ColorByType.ZONELET, ColorByType.PART]:
    plotter = PrimePlotter()

    for part_id, part_data in volume_graphics_data.items():
        for entity_type, entity_list in part_data.items():
            if entity_type == "faces":
                for item in entity_list:
                    if item is None:
                        continue
                    polydata, metadata = item
                    if metadata.has_mesh:
                        # Apply ColorByType logic (same as ColorByTypeWidget)
                        if color_mode == ColorByType.ZONELET:
                            color = color_matrix[metadata.id % num_colors].tolist()
                        elif color_mode == ColorByType.PART:
                            color = color_matrix[metadata.part_id % num_colors].tolist()
                        else:  # ZONE
                            color = color_matrix[metadata.zone_id % num_colors].tolist()
                        plotter.add_mesh(
                            polydata, metadata, color=color, opacity=1.0, show_edges=True
                        )

    mode_name = color_mode.name
    plotter.add_text(
        f"Plot 9 \u2014 ColorByType.{mode_name}",
        position="upper_left",
        font_size=10,
        color="black",
    )
    plotter.show(title=f"Plot 9 \u2014 ColorByType.{mode_name}")

prime_client.exit()
13 pyvista graphics
13 pyvista graphics
13 pyvista graphics
Part Summary:

Part Name: solid_coupling_out
Part ID: 2
    18 Topo Edges
    12 Topo Faces
    1 Topo Volumes

    0 Edge Zones
        Edge Zone Name(s) : []
    0 Face Zones
        Face Zone Name(s) : []
    1 Volume Zones
        Volume Zone Name(s) : [solid_coupling_out]

    1 Label(s)
        Names: [out]

    Bounding box (-127 -360.99 -127)
                 (127 -184.15 127)

Part Name: solid_coupling_in1
Part ID: 3
    18 Topo Edges
    12 Topo Faces
    1 Topo Volumes

    0 Edge Zones
        Edge Zone Name(s) : []
    0 Face Zones
        Face Zone Name(s) : []
    1 Volume Zones
        Volume Zone Name(s) : [solid_coupling_in1]

    1 Label(s)
        Names: [in1]

    Bounding box (-127 184.15 -127)
                 (127 356.616 127)

Part Name: solid_tee
Part ID: 4
    50 Topo Edges
    31 Topo Faces
    1 Topo Volumes

    0 Edge Zones
        Edge Zone Name(s) : []
    0 Face Zones
        Face Zone Name(s) : []
    1 Volume Zones
        Volume Zone Name(s) : [solid_tee]

    0 Label(s)
        Names: []

    Bounding box (-127 -184.15 -127)
                 (127 184.15 203.2)

Part Name: solid_coupling_in2
Part ID: 5
    18 Topo Edges
    12 Topo Faces
    1 Topo Volumes

    0 Edge Zones
        Edge Zone Name(s) : []
    0 Face Zones
        Face Zone Name(s) : []
    1 Volume Zones
        Volume Zone Name(s) : [solid_coupling_in2]

    1 Label(s)
        Names: [in2]

    Bounding box (-95.25 -95.25 203.2)
                 (95.25 95.25 374.65)

Part Name: cap_out
Part ID: 6
    1 Topo Edges
    1 Topo Faces
    0 Topo Volumes

    0 Edge Zones
        Edge Zone Name(s) : []
    1 Face Zones
        Face Zone Name(s) : [cap_out]
    0 Volume Zones
        Volume Zone Name(s) : []

    1 Label(s)
        Names: [outlet_main]

    Bounding box (-76.2 -360.99 -76.2)
                 (76.2 -360.99 76.2)

Part Name: cap_in2
Part ID: 7
    1 Topo Edges
    1 Topo Faces
    0 Topo Volumes

    0 Edge Zones
        Edge Zone Name(s) : []
    1 Face Zones
        Face Zone Name(s) : [cap_in2]
    0 Volume Zones
        Volume Zone Name(s) : []

    1 Label(s)
        Names: [in2_inlet]

    Bounding box (-51.308 -51.308 374.65)
                 (51.308 51.308 374.65)

Part Name: cap_in1
Part ID: 8
    1 Topo Edges
    1 Topo Faces
    0 Topo Volumes

    0 Edge Zones
        Edge Zone Name(s) : []
    1 Face Zones
        Face Zone Name(s) : [cap_in1]
    0 Volume Zones
        Volume Zone Name(s) : []

    1 Label(s)
        Names: [in1_inlet]

    Bounding box (-76.2 356.616 -76.2)
                 (76.2 356.616 76.2)

Total running time of the script: (0 minutes 54.000 seconds)

🏷 Tags: Graphics

Gallery generated by Sphinx-Gallery
